Mikrotik ppoe

Mikrotik ppoe connection

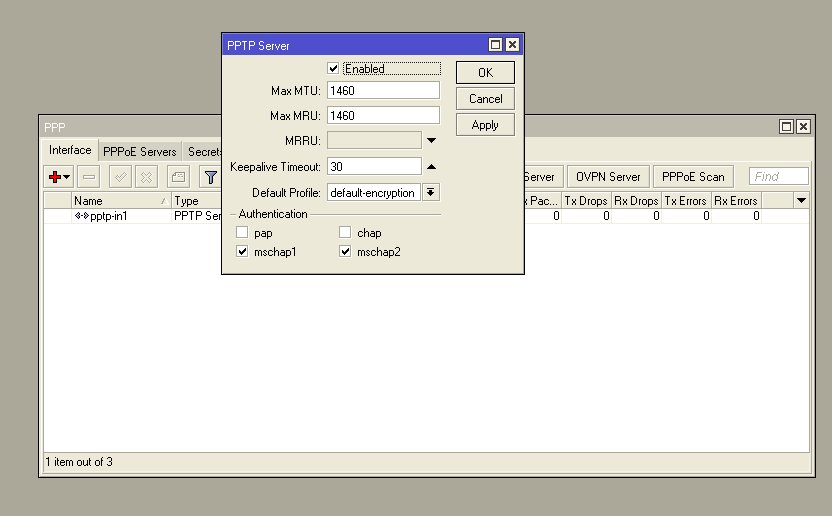

Go to Mikrotik ppp opetion and enable ppoe server

Add a new ppoe server

Add a new user ID with Passward in PPP Secrets opetion.

PPP profile


On Mikrotik making ppp server and client settings after that add a new PPOE VPN Dialup conection on your Operating System with adding ID, Passward & IP address of PPP SERVER.

Mikrotik NAT Configuration

Mikrotik NAT Configuration

Go to Firewall and add NAT rule entry.
1- select srcnat opetion in Chain
2- add Src address with subnet

3- In NAT rule entery select "masquerade" in Action opetion.
4- Go to Firewall rules and add new entry
select "forward" in Chain opetion and add Src address
shown in figure...........
5- Lastly add DNS server Ip Address.which provide from ISP.

Monday 12 December 2011

DDNS dyndns


Defination: DDNS Dyndns

 (Dynamic DNS) is a service that maps Internet domain names to IP addresses
 DDNS (dyndns) allows anyone hosting a Web or FTP server to advertise a public name to all users.







http://dyndns.com
Go to website and make new login with ID & Passward. It provide you free dynamic domain.Make domain and add your Router Wan ip against your domain.

2ndly go router and select DDNS (dyndns) opetion and add your domain with user ID & Passward. if your router have Dynamicly ip address then DDNS (dyndns)  automatically update own ip address on http://www.dyndns.com
Due to this process your Domain Resolve properly.


You can use DDNS - Dyndns on your device which can provide you from ISP (internet service provider ).

Sample is here....



Remote Desktop (rdp)

Remote Desktop connection

1- go > windows firewall.
2- select check box Remote Desktop  > click ok button.
3- go > My computer Properties  > select "allow remote desktop"  > Add users to allow remote desktop.
click ok & apply.

Saturday 10 December 2011

creat rules on ISA PROXY SERVER

ISA SERVER



ISA PROXY SERVER provide you rules to allow selected trafic to all clients.
EXP: EXTERNAL TRAFIC
          INTERNAL TRAFIC
          LOCAL HOST TRAFIC
SHOWN IN FIGURES FOR CREATING RULES.

HOW TO INSTALL ISA PROXY SERVER 2004


Install ISA Proxy Server 2004

Following steps :

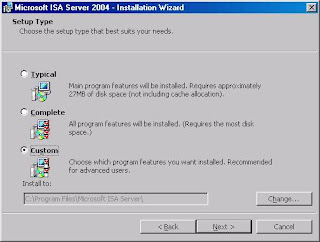

1.                Insert the ISA Proxy Server 2004 disk into the CD-ROM drive or connect to a internet and download the ISA Proxy Server 2004 installation files.
2.                   On the Microsoft Internet Security and Acceleration Server 2004 window and click the Install ISA Proxy Server 2004.
3.     SNMP and IIS Service will be stopped during installation. Internet Connection Firewall (ICF) / Internet Connection Sharing (ICF) and/or IP Network Address Translation services.


















Thursday 8 December 2011

pfsense lan wan rules

Lan rules

Wan rules

Visit Pfsense website and see more articles.
pfsense articles.

VPN Types


What is a VPN ?

A VPN (Virtual Private Network) is a way of creating a secure connection to and from a network or computers.

PPTP VPN ( Dialup VPN )

PPTP is a software based VPN. A secure " tunnel " is created between two multi points allowing a remote side user to connect to a remote network. This type of connection with many types of softwares and hardwares. Windows Server has a PPTP build-it and we can connect to it a VPN client within Windows. Require a Third party software to be loaded on remote workstations.

 Windows server low cost for VPN connection. It is referred to as a "dial-up VPN" because when the client connect it looks like it's dialing up. Shown figure below:







Site-to-Site VPN.

Site-to-site VPN is the same as point-to-point. There is no "dedicated" line in use. Each site/branch has it's own internet connection. Although point-to-point the routers at both ends do all his the work. They do all the routing and encryption. This is an easy way to connect twoor multiple Branches using a PPTP connection. Site-to-site VPN can work with hardware and software based. On the software side, we can use ISA SERVER or On the hardware side, you can have many devices Cisco Routers, Wire walls
So this type of setup is called IPsec.







Point-to-Point VPN.

Two or more networks are connected to each other through dedicated line from provided an ISP.
For example.
 T1, Metro Ethernet,  ATM etc... The main strength of using a line is the direct point-to-point connection. It is not public Internet, so there performance is not degraded/down by routing, latency, & external congestion.







These types of connections can be very expensive. A physical "loop" of wire/fiber must be used to connect the these multiple destinations. However these are actual point-to-point connections. Point-to-point connections are usually required when two branches/offices needed to transfer large amount of data.

MPLS VPN









Wednesday 7 December 2011

TP-Link simulators


We can review routers virtually.


Pfsense mac filtering

Pfsense mac filtering


Pfsense DHCP Server provide MAC filtering to controle clients. Just enable "Static ARP entries" in Pfsense DHCP Server and add client MAC address with IP address.
Shown in figure.

Mdeamon Domain Sharing (Minger)

Mdeamon Domain Sharing (Minger)

send test mail on A side Mdeamon

send test mail on B side, recieving from A side Mdeamon
Go to Account settings and enable "Minger" opetion
Go to Domain services and enable "Domain Sharing" with Host IP, Port, & Passward.

NOTE :
Same email account are not make to both side Mdeamons Then it cannot be work properly.

Monday 5 December 2011

rj45 wall jack




Multiple Remote Desktop Sessions in Windows XP



First
  1. -> Start computer in Safe Mode.
  2. -> Disable Remote Desktop Connection and Terminal Services
  1. -> Right click My Computer properties & click remote opetion.
  2. "Allow users to connect remotely this computer " uncheck this box.
  3. ->  Control Panel - > Administrative Tools ->  Services -> Terminal Services  Properties
  4. Select Disabled opetion.


Second

  1. Copy Terminal Services "DLL"  and Save it
  2. Go C:\Windows\system32\dllcache
  3. Rename the termsrv.dll to termsrv_dll.bak.
  4. Copy the downloaded termsrv.dll file to C:\Windows\system32\dllcache.
  5. Open the C:\Windows\system32 folder and delete termsrv.dll in C:\Windows\system32
Third

     1.  You can edit the Windows Registry
     2.  HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal
          Server\Licensing Core
     3.  Add a Keyword EnableConcurrentSessions and give it value "1"

Forth

     1.  You can edit the gpedit.msc
     2-> Computer Configuration -> Administrative Templates ->
          Windows Components ->
          Terminal Services and click Limit number of RDP
          connections.
     3.  Right click My Computer properties & click remote opetion
     4.  ->  "Allow users to connect remotely to this computer"
                                             -> Restart PC




Common TCP/IP Protocols and Ports - port-table

Ports for Internet Services

Service TCP UDP Notes
SSH 22
Shell
HTTP 80
Hyper Text Transfer Protocol
HOSTS2 81 81
XFER 82 82
RPC Endpoint Mapper 135 135
LDAP 389 389 Lightweight Directory Access Protocol
MS NetMeeting 1024, 1503,  dyn >=1024 video conferencing
Timbuktu 407, 1417-1420 407 remote control
SLP 427 427 Service Location Protocol
HTTPs 443
HTTP (SSL)
LPD /  printer 515 515 printing
ULP 522 522 User Location Protocol
AppleTalk Filing Protocol (AFP) 548 548
QuickTime 4 RTSP RTP-QT4 streaming audio & video
RTSP 554
Real Time Streaming Protocol
NNTPs 563
NNTP  (SSL)
Internet Printing Protocol (IPP) 631 631 IPP enabled printer through the Internet
LDAPs 636 636 secure LDAP
Doom 666 666 network gaming
Remotely (ControlIT) 799
remote control.
VMware Virtual Machine Console 902
view of virtual machines.
SOCKS 1080
internet proxy
OpenVPN 1194 1194
Kazaa 1214 1214 sharing files peer-to-peer
WASTE 1337 1337
Lotus Notes Domino 1352

VocalTec Internet Phone 1490, 6670, 25793 22555 video conferencing
Citrix ICA 1494, dyn 1023 1604, dyn1023 remote application access
Virtual Places 1533
conferencing
Xing StreamWorks
1558 video streaming
Novell GroupWise (Remote Client) 1677 1677 group collaboration
H.323 Host Call 1720 1720
PPTP 1723
virtual private network (VPN)
MS ICCP 1731 1731 audio call controlar
MS NetShow 1755 1755, dyn 1024  5000 streaming video
MSN Messenger 1863
instant messenging
Netopia netOctopus 1917, 1921 1917 network management
Big Brother 1984 1984 network monitoring
ICU II 2000-2003
videoconferencing.
iSpQ 2000-2003
videoconferencing
glimpse server 2001
search engine
Distributed.Net RC5/DES 2064
distributed computation
SoulSeek 2234, 5534 2234, 5534 file sharing
Microsoft DirectX gaming (DirectPlay) 7 2300-2400, 47624 2300-2400 networked multiplayer games
Microsoft DirectX
2302-2400, 6073 networked multiplayer games
MADCAP - Multicast Address Dynamic Client Allocation Protocol 2535 2535 multicast address dynamicly client allocation
Netrek 2592
network game
ShareDirect 2705 2705 peer-to-peer file sharing.
URBISNET 2745 2745 Alex Tronin reports
Borland Interbase database 3050 3050
squid 3128 3130 web proxy cache
iSNS 3205 3205 Internet Storage Name Service
iSCSI 3260 3260 SCSI over IP
Windows Remote Desktop Protocol (RDP) 3389
Remote Desktop Web Connection
NetworkLens SSL Event 3410 3410
Virtual Places Voice Chat 3450, 8000-9000
voice chat
Apple iTunes music sharing (DAAP) 3689 3689 Digital Audio Access Protocol
World of Warcraft 3724
online games
Mirabilis ICQ dyn 1024 4000 locator, chat
Blizzard 4000, 6112-6119 4000, 6112-6119 network gaming
Abacast 4000-4100, 4500, 9000-9100
peer-to-peer audio and video streaming.
Global Chat client, server 4020 4020 chat rooms
PGPfone
4747 secure phone
PlayLink 4747, 4748, 10090 6144 online games
radmin 4899 4899 remote control
Yahoo Messenger - Voice Chat 5000-5001 5000-5010 voice chat
GnomeMeeting H.323 HostCall, 30000-30010 5000-5003, 5010-5013 audio and videoconference
Yahoo Messenger 5050
messaging
SIP 5060 5060 Session Initiation Protocol
Apple iChat AV
SIP, RTP-iChatAV audio and video conferencing
Yahoo Messenger - Webcams 5100
video
AOL Instant Messenger (AIM) 5190 5190 America OnLine
AIM Video IM 1024-5000 ? 1024-5000 ? video chat
AOL ICQ 5190, dyn >=1024
messaging
AOL 5190-5193 5190-5193 America OnLine
XMPP 5222, 5269 5222, 5269 Extensible Messaging and Presence Protocol.
Qnext 5235-5237 5235-5237 audio,video conference,fileshare
iChat local traffic 5298 5298 Some Rendezvous thing
Multicast DNS 5353 5353 Domain Name Service port is 53.)
Dialpad.com 5354, 7175, 8680-8890, 9000, 9450-9460 dyn 1024 telephony
HotLine 5500-5503
peer-to-peer filesharing.
SGI ESP HTTP 5554 5554 SGI Embedded Support Partner (ESP) web server
InfoSeek Personal Agent 5555 5555
pcAnywhere 5631 5632 remote control
Chat Server 5760

 Web Tour 5761

Admin Server 5764

VNC 5800+, 5900+
remote control
Blizzard Battle.net 6112 6112 online gaming
GNUtella 6346, 6347 6346, 6347 peer-to-peer file sharing
Netscape Conference H.323 HostCall, 6498, 6502 2327 audio conferencing
Danware NetOp Remote Control 6502 6502 remote control
common IRC 6665-6669
Internet Relay Chat
Net2Phone CommCenter selected 6801 telephony
BitTorrent 6881-6889, 6969
distributed data download
Blizzard Downloader World of Warcraft, Battle.net and BitTorrent
 patches download for World of  Warcraft
RTP-QT4
6970-6999 Realtime Transport Protocol
VDOLive 7000 user-specified streaming video
Real Audio & Video RTSP, 7070 6970-7170 streaming audio and video
CU-SeeMe, Enhanced CUSM 7648, 7649, LDAP 7648-7652, 24032 video conferencing
common HTTP 8000, 8001, 8080

Apache JServ Protocol v12 (ajp12) 8007 8007
Apache JSer 8009 8009
Grouper 8038 8038 peer-to-peer filesharing
PDL datastream 9100 9100  commonly used by HP printer & by Apple
MonkeyCom 9898 9898  video chat
iVisit
9943, 9945, 56768 video conferencing
The Palace 9992-9997 9992-9997 chat environment
common Palace 9998
chat environment
NDMP 10000 10000 Network Data Management Protocol
Amanda 10080 10080 backup software
Yahoo Games 11999
games
Italk 12345 12345 network chat supporting multiple access methods
RTP-iChatAV
16384-16403 Apple iChat
RTP
16384-32767 Realtime Transport Protocol.
Palm Computing Network Hotsync 14237 14238 data synchronization
Liquid Audio 18888
streaming audio
FreeTel
21300-21303 audio conferencing
VocalTec Internet Conference 22555 22555 audio and documents conferencing
Quake 26000 26000 network games
MSN Gaming 28800-29100 28800-29100 network gaming
Sygate Manager
39213

entire Network Error

Regedt32.exe

1.








Start run & write (Regedt32.exe) and go to following key:
      HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control
      \NetworkProvider\Order
 2.
Value : providerorder
Data :  reg_sz
value : lanmanworkstation













 3.
This change should take effect without restarting Windows NT.

internet Cable Sequance - rj45 colour coding


rj45 colour coding

Crossover Cable


Straight Cable


1. White Orange
2. Orange
3. White Grean
4. Blue
5. White Blue
6. Green
7. White Brown
8. Brown
